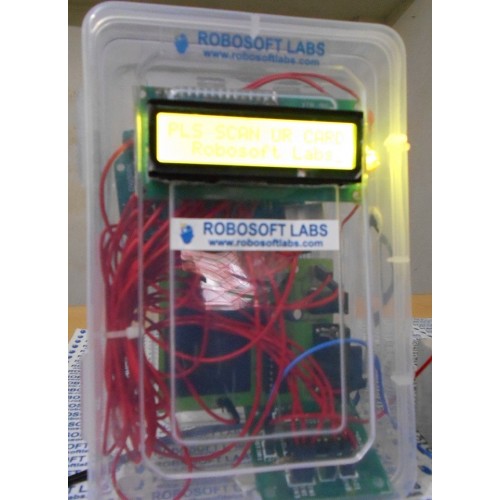

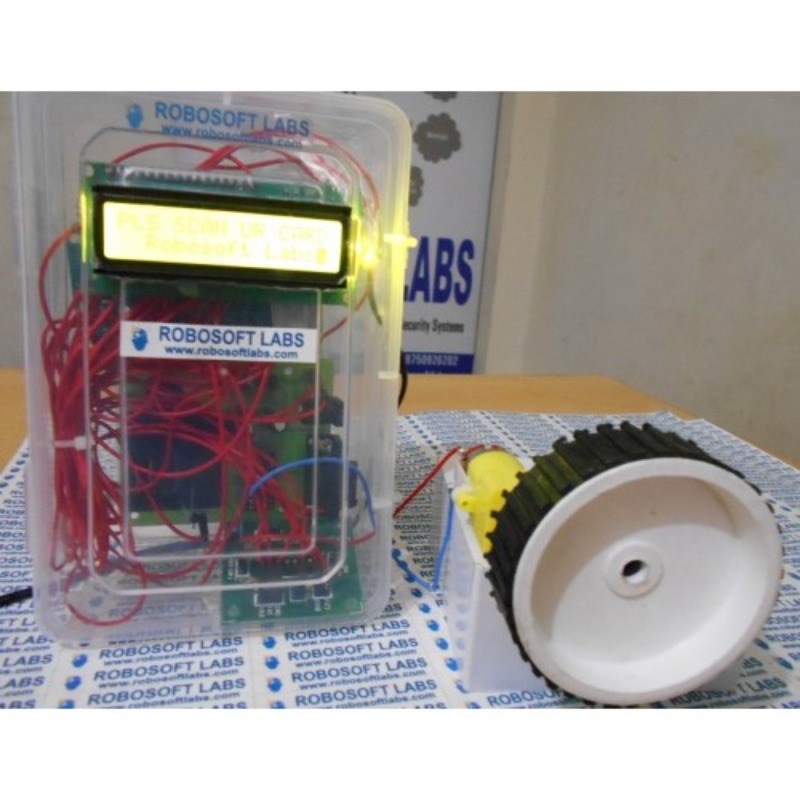

🔐 RFID Based Security System – DC Motor Control Project Kit

Smart Access | Automated Door Control | Ideal for Students & Institutions

The RFID Based Security System DC Motor Control Project Kit is a modern access-control solution designed to allow only authorized users to enter restricted areas. Using Radio Frequency Identification (RFID) technology, the system ensures enhanced security, automation, and ease of use.

Each authorized person is provided with a unique RFID card/tag, which grants access when scanned. Unauthorized cards are denied entry with clear visual and audio indications.

⚙️ How It Works

• When a valid RFID card is detected:

  • The DC motor rotates forward, indicating the sliding door opening

  • The door remains open for a predefined time

  • The motor then rotates in reverse, automatically closing the door

• If an invalid card is scanned:

  • Access is denied

  • Status is displayed on LCD

  • Buzzer alerts the user

🧠 Core Technology

• Powered by AVR Microcontroller (ATmega8)

• Integrated with:

  • RFID Reader Module

  • LCD Display for real-time status

  • Buzzer for sound indication

  • Motor Driver for DC motor control

  • Relay-based door control logic

📦 Package Includes

1. ✅ Fully Assembled RFID Based DC Motor Control Project Kit

2. ✅ 3 RFID Cards

3. ✅ Step-by-step Tutorial Guide (from scratch to complete system)

4. ✅ Pre-burnt Program in ATmega8 Microcontroller

🧩 Kit Components

• RFID Module

• AVRDuino with ATmega8 Microcontroller

• 16×2 LCD Display

• Buzzer Board

• L293D Motor Driver Module

• BO-Type DC Motor

• Berg Connecting Wires (Female–Female)

• Instruction & Learning Guide

🎯 Applications

• RFID Based Door Access Control

• Smart Security Demonstration Projects

• College & Diploma Final Year Projects

• Embedded Systems & IoT Learning Kits

• Automation & Mechatronics Labs

⚠️ Important Notes

• This project kit is assembled using prefabricated parts

• Enclosed in a plastic project box (as shown in demo video)

• ❌ Program code / HEX file will NOT be provided

• ❌ Box shown in images/videos may not be included

• 🎨 Component colors may vary based on availability

🌟 Why Choose This Kit?

✔ Ready-to-use & reliable
✔ Ideal for learning RFID & motor control
✔ Real-world security system simulation
✔ Saves time on wiring & coding
✔ Perfect for academic demonstrations
